10G Cat.6A Solid Cable
- ISO/ IEC 11801:2011(Ed.2.2)
- IEC 61156-5:2009(Ed.2.0)
- EN 50173-1:2011
- EN 50173-2:2007 including amendment A1:2010
- ANSI/TIA-568-C.2:2009
Order Information
|
Part No. |
No. of Pairs |
Cable Type |
Conductor Size |
Core Dimension (mm) |
Overall Dimension (mm) |
NVP(%) |
|
66504A1 |
4 |

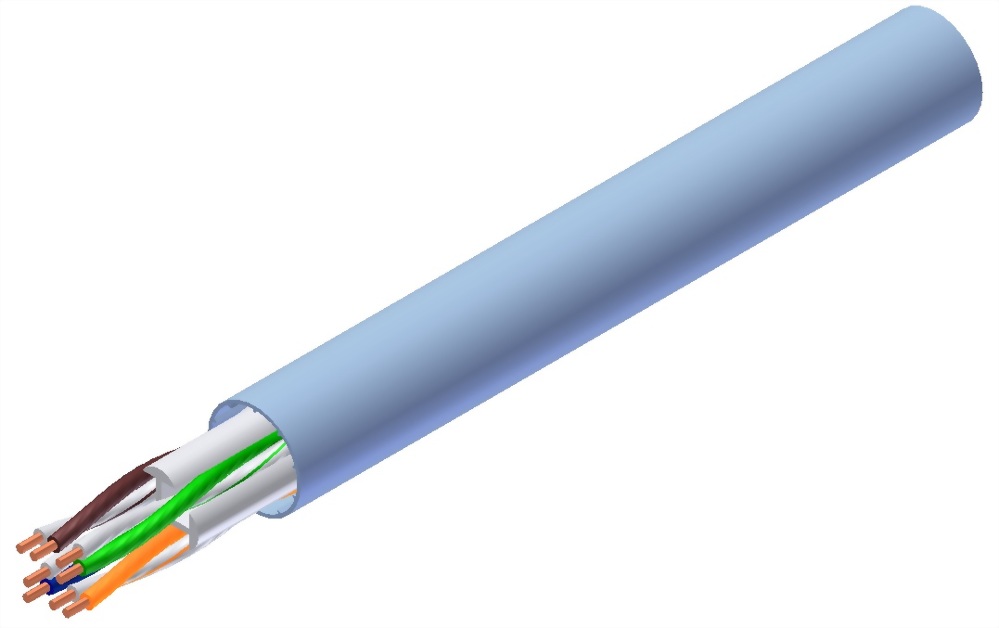

U-UTP |
23AWG |
1.03 |
8.3 |
66.7 |
|
66304A |
4 |

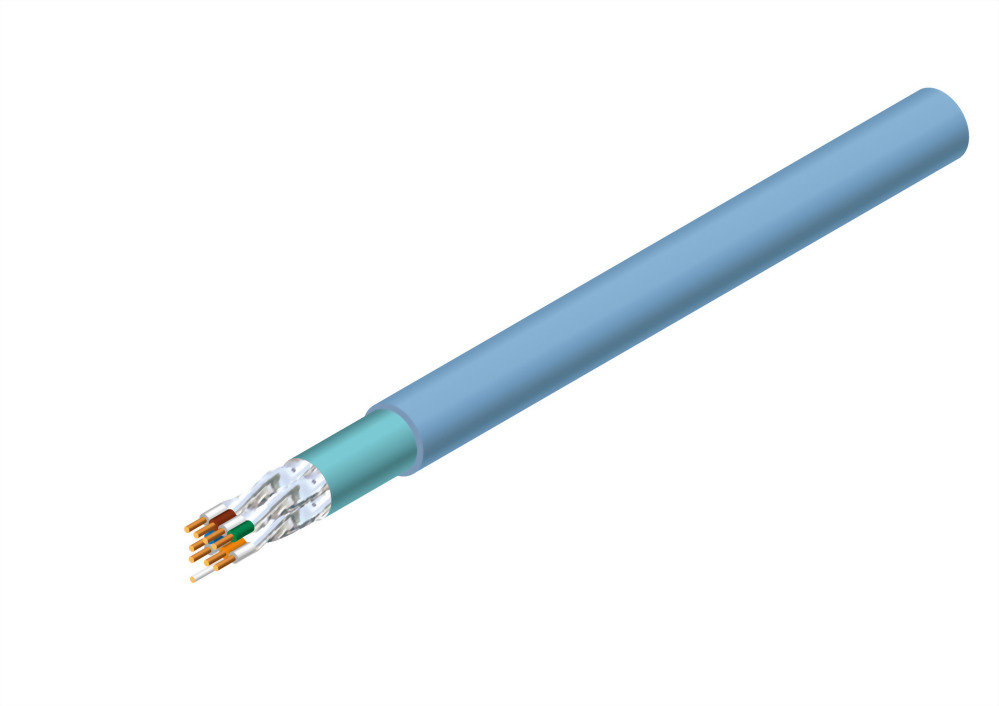

F-FTP |
23AWG |
1.32 |
7.59 |
76.5 |
|
66304BA |
4 |
U-FTP |
23AWG |
1.32 |
7.47 |
76.5 |
|
66904A |
4 |
S-FTP |
23AWG |
1.34 |
8.05 |
76.5 |
Jacket: PVC,LSZH (Low Smoke Zero Halogen),Outdoor PE
Packaging:305M/500MWooden Reel
Cat 6A Cable Standard Compliances
-
ISO/ IEC 11801:2011(Ed.2.2)
-
IEC 61156-5:2009(Ed.2.0)
-
EN 50173-1:2011
-
EN 50173-2:2007 including amendment A1:2010
-
ANSI/TIA-568-C.2:2009
Features and Benifits
- Ideal solution for
10 Gigabit Ethernet
- Individual pair
shielding or special designed filler to provide EMI protection
- Designed with
shielding to offer maximum pair separation, increasing key electrical
performance parameters
- Provides positive
PSACR beyond 500MHz for higher available bandwidth
- Every master reel
is tested to ensure electrical performance compliance
- Print legend
contains footage marking from
- Unique
product-specific packaging for ease of identification
- RoHS compliant
- EC Verified
Application
- 2.4/1.2 Gb/s ATM
- IEEE 802.3an:
- 3D imaging
- Digital Video
- Broadband and
Baseband Analog Video
