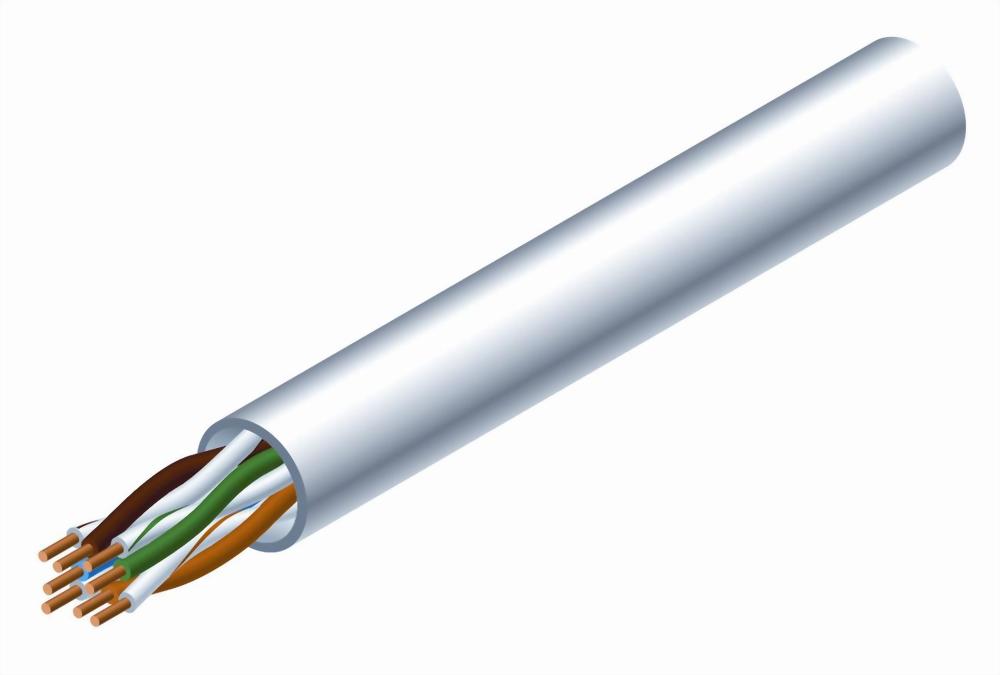

Cat.5e Solid Cable

Standard Compliances
- ISO/IEC 11801:2011(Ed.2.2)
- IEC 61156-5:2009(Ed.2.0)
- EN 50173-1:2011
- EN 50173-2:2007 including amendment A1:2010
- ANSI/TIA-568-C.2:2009


Order Information

Part No.

No. of Pairs

Cable Type

Conductor Size

Core Dimension(mm)

Overall Dimension(mm)

NVP(%)

65504A

4

U-UTP

24AWG

0.90

4.98

66

65704A

4

F-UTP

24AWG

1.03

5.99

66

65904A

4

SF-UTP

24AWG

1.03

6.42

66


Jacket: PVC, LSZH (Low Smoke Zero Halogen), Outdoor PE

Packaging: 305M Reelex Box/ Reel in Box




C5e Cable Standard Compliances

- ISO/IEC 11801:2011(Ed.2.2)

- IEC 61156-5:2009(Ed.2.0)

- EN 50173-1:2011

- EN 50173-2:2007 including amendment A1:2010

- ANSI/TIA-568-C.2:2009

 Features and Benefits

- Positive PSACR beyond 155MHz for future bandwidth requirements

- Characterized and tested to100 MHz

- Unique product-specific packaging for ease of identification

- Every master reel is tested to ensure electrical performance compliance

- Print legend contains footage marking from 305M to 0M or 500M to 0M

- RoHS compliant

- ETL / EC Verified

Applications

- IEEE 802.3: 1000BASE-T (Gigabit Ethernet), 100BASE-TX, 10BASE-T

- 52/155 Mp/s ATM

- ANSI X3.263: 100 Mb/s

- 4/16 Mb/s Token Ring
